USB Type-C 사양 1.0

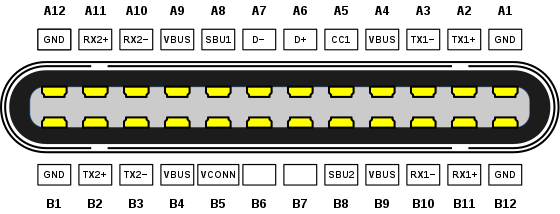

단자 핀  이름 및 설명

A1	GND	Ground return	B12	GND	Ground return
A2	SSTXp1	SuperSpeed differential pair #1, TX, positive	B11	SSRXp1	SuperSpeed differential pair #2, RX, positive
A3	SSTXn1	SuperSpeed differential pair #1, TX, negative	B10	SSRXn1	SuperSpeed differential pair #2, RX, negative
A4	VBUS	Bus power	B9	VBUS	Bus power
A5	CC1	Configuration channel	B8	SBU2	Sideband use (SBU)
A6	Dp1	Non-SuperSpeed differential pair, position 1, positive	B7	Dn2	Non-SuperSpeed differential pair, position 2, negative[a]
A7	Dn1	Non-SuperSpeed differential pair, position 1, negative	B6	Dp2	Non-SuperSpeed differential pair, position 2, positive[a]
A8	SBU1	Sideband use (SBU)	B5	CC2	Configuration channel
A9	VBUS	Bus power	B4	VBUS	Bus power
A10	SSRXn2	SuperSpeed differential pair #4, RX, negative	B3	SSTXn2	SuperSpeed differential pair #3, TX, negative
A11	SSRXp2	SuperSpeed differential pair #4, RX, positive	B2	SSTXp2	SuperSpeed differential pair #3, TX, positive
A12	GND	Ground return	B1	GND	Ground return





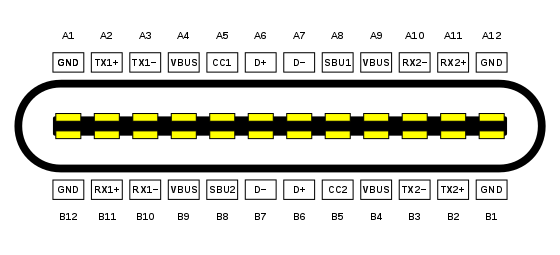

USB Type-C 플러그 핀 끝부분.



케이블 선

완전한 기능의 USB 3.1 및 2.0 Type-C 케이블 선플러그 1, USB Type-CUSB Type-C 케이블플러그 2, USB Type-C핀이름선 색번호이름설명2.0[a]핀이름

Shell	Shield	브레이드	Braid	Shield	Cable external braid	✓	Shell	Shield
A1, B12, B1, A12	GND	양철 도금	1	GND_PWRrt1	Ground for power return	✓	A1, B12, B1, A12	GND
			16	GND_PWRrt2		✗
A4, B9, B4, A9	VBUS	빨강	2	PWR_VBUS1	VBUS power	✓	A4, B9, B4, A9	VBUS
			17	PWR_VBUS2		✗
B5	VCONN	노랑	18	PWR_VCONN	VCONN power, for active cables[b]	✓	B5	VCONN
A5	CC	파랑	3	CC	Configuration channel	✓	A5	CC
A6	Dp1	흰색	4	UTP_Dp[c]	Unshielded twisted pair, positive	✓	A6	Dp1
A7	Dn1	녹색	5	UTP_Dn[c]	Unshielded twisted pair, negative	✓	A7	Dn1
A8	SBU1	빨강	14	SBU_A	Sideband use A	✗	B8	SBU2
B8	SBU2	검정	15	SBU_B	Sideband use B	✗	A8	SBU1
A2	SSTXp1	노랑[d]	6	SDPp1	Shielded differential pair #1, positive	✗	B11	SSRXp1
A3	SSTXn1	갈색[d]	7	SDPn1	Shielded differential pair #1, negative	✗	B10	SSRXn1
B11	SSRXp1	녹색[d]	8	SDPp2	Shielded differential pair #2, positive	✗	A2	SSTXp1
B10	SSRXn1	주황색[d]	9	SDPn2	Shielded differential pair #2, negative	✗	A3	SSTXn1
B2	SSTXp2	흰색[d]	10	SDPp3	Shielded differential pair #3, positive	✗	A11	SSRXp2
B3	SSTXn2	검정[d]	11	SDPn3	Shielded differential pair #3, negative	✗	A10	SSRXn2
A11	SSRXp2	빨강[d]	12	SDPp4	Shielded differential pair #4, positive	✗	B2	SSTXp2
A10	SSRXn2	파랑[d]	13	SDPn4	Shielded differential pair #4, negative	✗	B3	SSTXn2
↑ USB 2.0 Type-C 케이블은 SuperSpeed 또는 Sideband를 위한 선을 포함하지 않음. ↑ VCONN must not traverse end-to-end through the cable. Some isolation method must be used. ↑ 이동:가 나 There is only a single differential pair for non-SuperSpeed data in the cable, which is connected to A6 and A7. Contacts B6 and B7 should not be present in the plug. ↑ 이동:가 나 다 라 마 바 사 아 Wire colours for differential pairs are not mandated.



https://namu.wiki/w/USB

USB - 나무위키

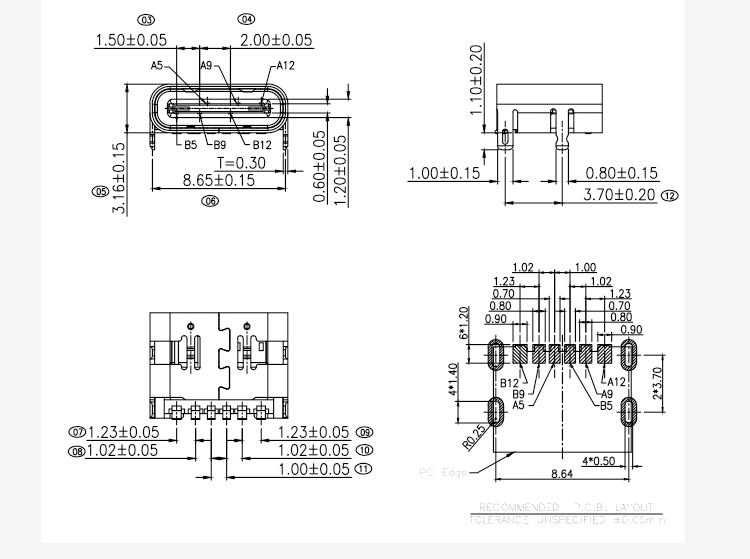

USB-C를 충전용으로만 쓸때는 6PIN 짜리 소켓을 사용하면 된다.

A12/B12 (GND),  A9/B9 (VBUS), A5 (CC), B5 (VCONN)



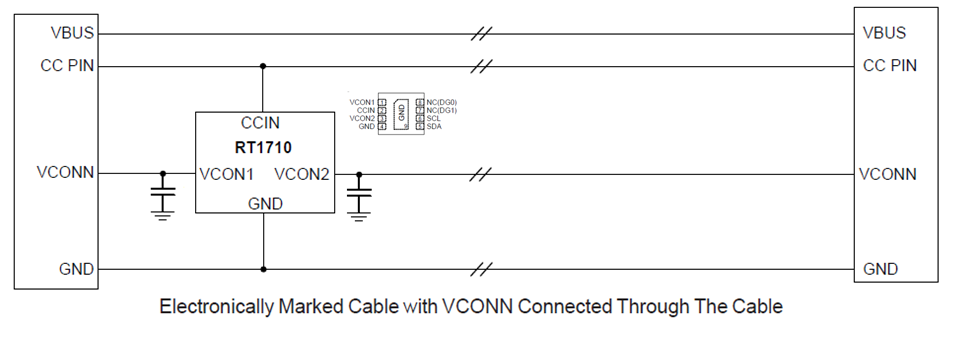

C-TYPE 케이블에는 ID 지정 회로가 내장되어 있습니다.



PD 및 충전관련 규격은 TI쪽 자료 보는게 빠를듯...

https://www.ti.com/product/TPS65987D
